Cabinet Handle & Knob Installation Guide
1. Mark the center position you would like your handle or knob to be installed
2. Attention needs to be made to the position of handles or knobs ensuring clearance for bi-folding cabinet units oncupboard fronts, handles may need to be installed vertically.

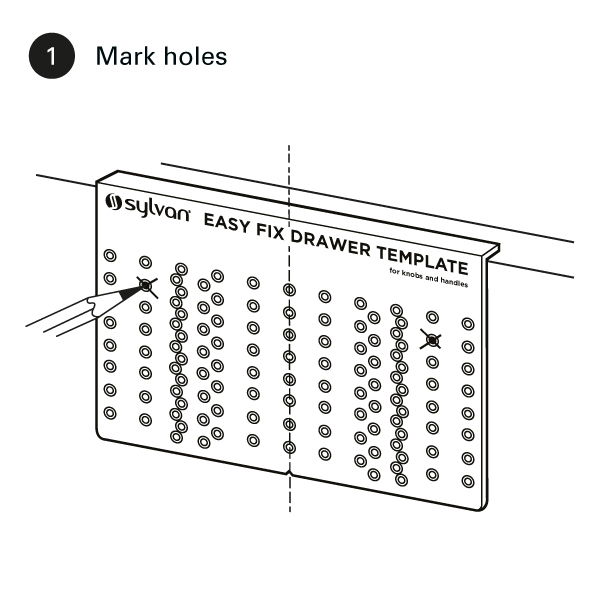

3. Using a template, mark your hole centers at the required height,this template can be used horizontally (shown) or vertically.
1. Using a 4mm drill bit, drill required holes square to the draw face though to the other side.

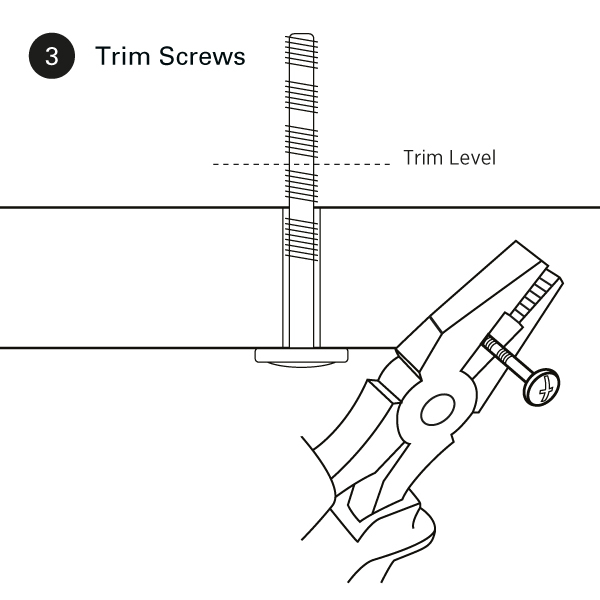

1. Insert screw into door face to determine material thicknessand mark fixing screw on trim level, each notch indicates a trim length
2. Using pliers or side-cutters, cutthe fixing screw to desired length.

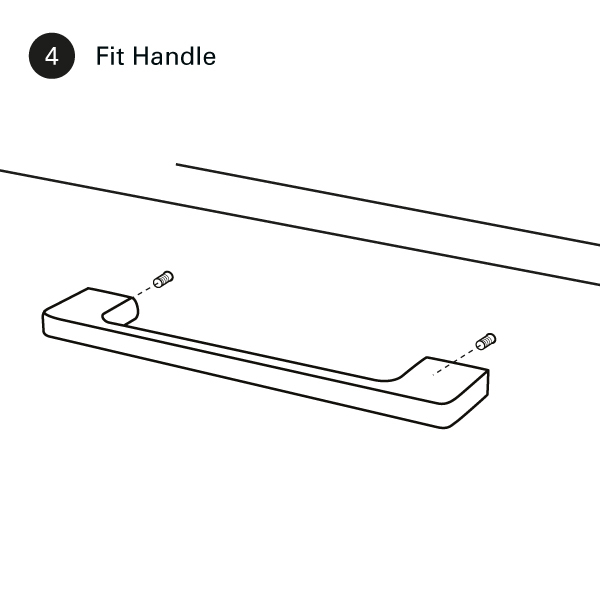

1. Insert trimmed fixing screws from the back side of thedrawer face allowing the exposed threads to show throughon the front.
2. Align handle screw holes and using a phillips head screwdriver, tighten the screws until firm.
