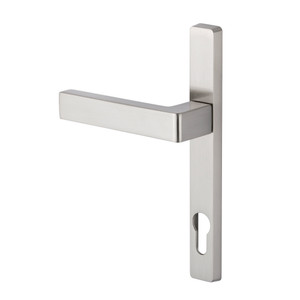

Narrow Style Lever Handle Orion

Orion Lever handle for Aluminium Doors I-11E

• Suitable for use on all doors requiring narrow backplate lever handles
• Available in Euro Profile keyhole stamp
• 85mm spacing between the spindle hole and keyhole
• Standard backplate 202mm can be used with our Iseo 741, Sylvan S726, euro profile mortice locks
• 240mm backplate suits Iseo 723 Performa 3 Point Locks and Iseo 741 euro mortice locks
• Reversible handle
• Ball assisted cassettes included for smooth and positive lever action
• This set requires the mortice lock to be well sprung to return the leversets to the at rest position
• Concealed screw fixing on outside of the door
• Stainless steel through bolt fixing screws supplied
• Grub screw locked split spindle for added strength
• Designed in New Zealand for New Zealand and Australian building requirements
• Screw centres 202mm plate -182mm
• Screw centres 240mm plate - 220mm
• Satin Nickel, White, Satin Black and Grey finish.
• Other powder coated colours are available special order






NB: Also available with Unpunched backplates

Black image shows euro cylinder installed this item is sold separately
