Smart Entry Lever Handle SL40E

Sylvan Electronic Smart Lever Handle

Our Sylvan electronic smart lever handle provides freedom, flexibility and security.


• Ideal for replacing an entrance leverset or knobset with a 54mm hole
• Suitable for residential use on wooden and aluminium doors
• This lock is supplied with a 60 to 70mm adjustable latch
• Door thickness 35 to 60mm
• IP55 rated
• Handle is reversible - see fixing instructions for changing the handing
• Not suitable for use in high sea salt and sulphur environments.
• Not suitable for outward opening doors without weather protection, the inside of the lock is not waterproof only the outside of the lock is IP rated.
•
• Data capacity: Fingerprint 200 Password 150, Card 150
• Battery operated 6V/4 x AA batteries - Alkaline only  (batteries not included)
• 54mm hole in the door
• Hidden key override

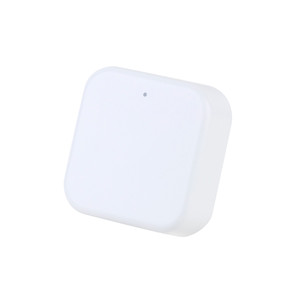

• Smart Hub - is sold separately. Smarthub enables, connection to multiple smart locks to the same device within a 10 metre range.

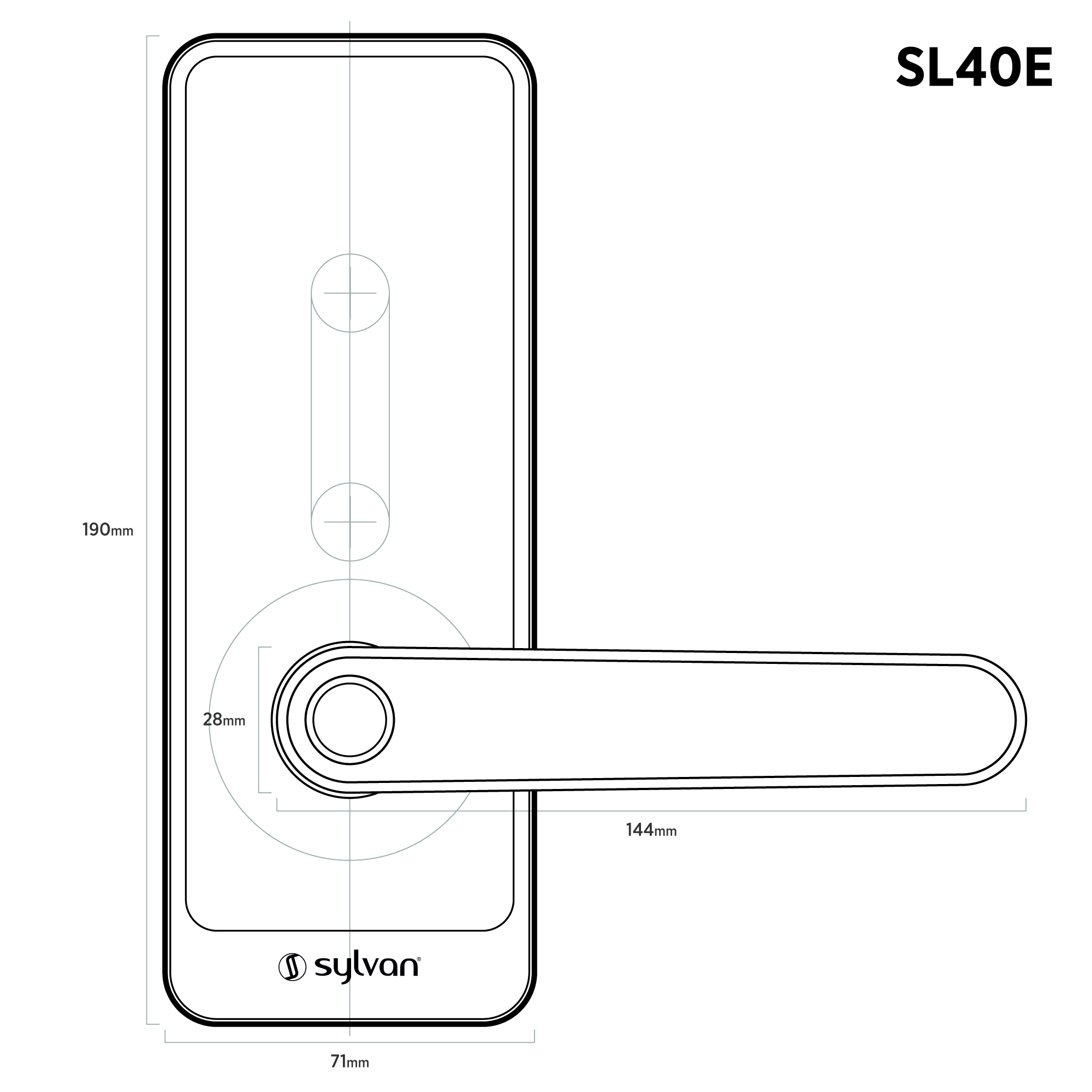

• Lock dimensions 188 x 67 x 25mm
• Finish Black and Satin Silver

Please note - if you have the lock set to passage mode and you want to lock your door from the outside - press the # key until the lock says "locked" - the next time you enter your code it will go back into passage mode.

Batteries are not included - We have found the AA Energizer Max Alkaline batteries to be the most suitable.

Download instructions

Download drilling template

Download installation video

To setup lock to TT app download setup video
